7 bar Unvented Temp & PRV - 1/2" x 15mm

7 bar Unvented Temp & PRV - 1/2" x 15mm

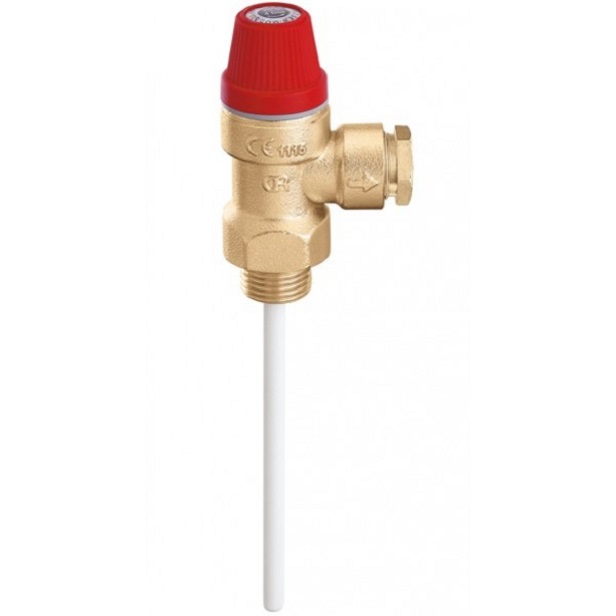

A 7 bar temperature and pressure relief valve which is WRAS approved and certified to EN1490, suitable for most unvented hot water cylinders

This valve will discharge if the temperature of the water reaches 90°C and/or the pressure reaches 7 bar, eliminating the risk of the cylinder exploding

Features include a 15mm brass compression fitting for discharge and a 1/2" BSP brass connector with an integral PTFE ring (to reduce the risk of leakage) which houses the 100mm long sensor probe

The body of the valve is made from a dezincification resistant alloy to prevent corrosion and ultimately failure

Maximum pressure: 10bar

Discharge rating 10Kw

WRAS approved
